Duratruss - DT 32/2-C23H-L135 black

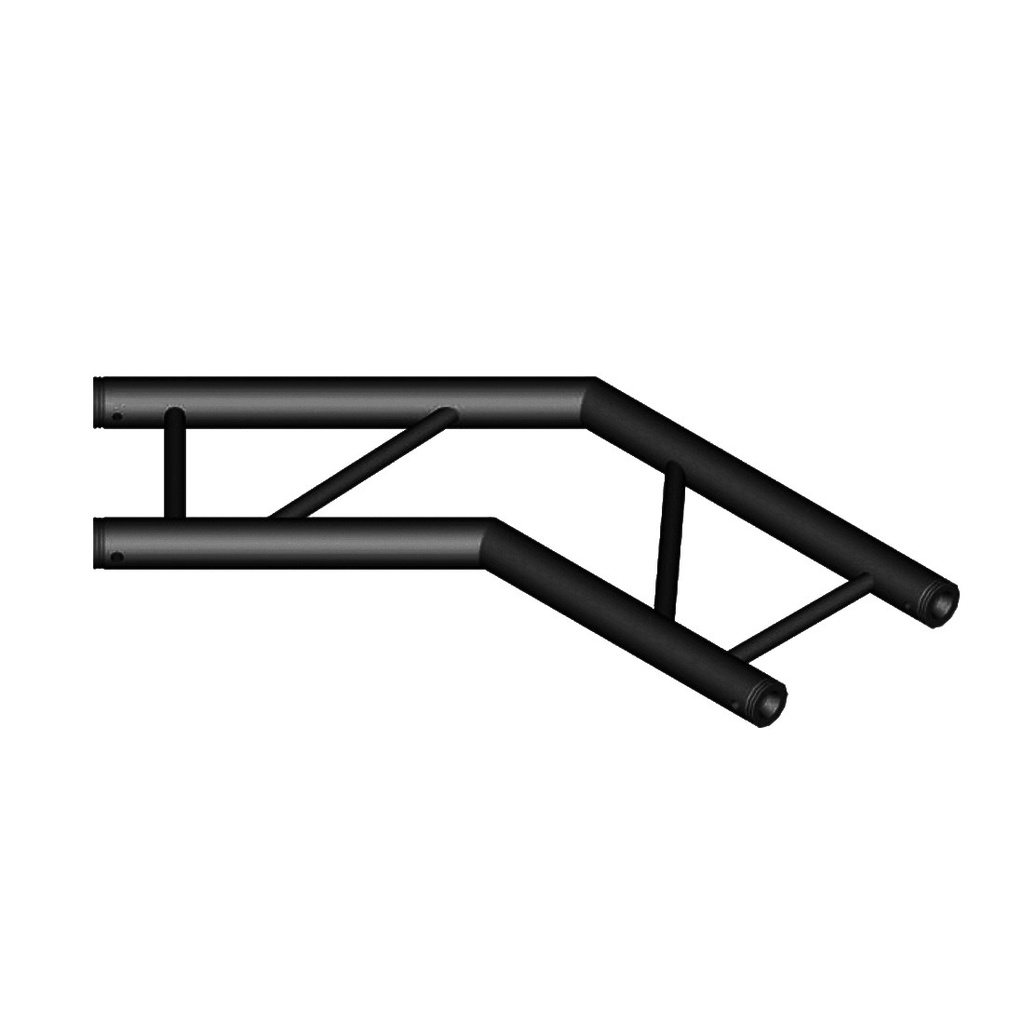

DuraTruss DT 32-C23H-L135 Black - 2-way-corner 135°, horizontal, Black
_x000D_The DT32 Series is one of the most sold Truss systems in general. The high load capacity and the light weight construction are plus points for this 29cm series.
For a fast and stress free build up, the DT Series is equipped with standard sized conical fast couplers.
The 50mm tubes are from high grade aluminum and show 2mm wall thickness. The bracing have a diameter of 20mm and also 2mm wall thickness.
The system from European production is compatible to the most common systems in the market.
Technical specs:
_x000D_
- Diametrics main pipe: 50mm
_x000D_
- Wall thickness: 2 m
_x000D_
- Dimensions braces: 20 x 2 mm
_x000D_
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
_x000D_
- Color: matt black RAL 9005
_x000D_
- Angle: 135°
_x000D_
- Connector: conical connector with pin and safety clip
_x000D_
- Included in delivery: 2 cones, 4 steel pins, 4 safety clips
_x000D_
- Produced according to DIN DIN 4112, DIN 4113-1
_x000D_
- Length: 500 mm (without cone)
_x000D_
- Width: 500 mm
_x000D_
- Height: 50 mm
_x000D_
- Weight: 2,6 kg
