Duratruss - DT 23/2-C41

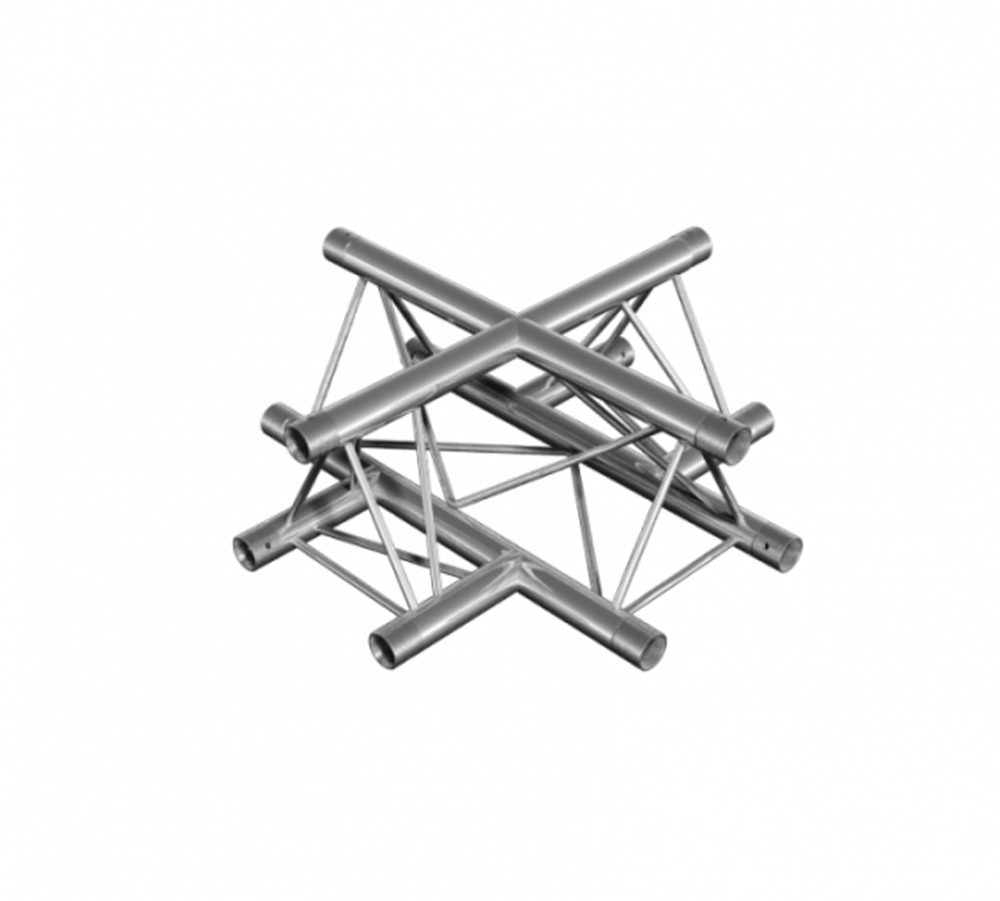

DuraTruss DT 23/2-C41 - 4 way X-joint 90°
_x000D_
_x000D_
The DT23 series is a 3-point-trussing-system with conical coupler (spigot), trusspin and safety clip. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The three main tubes are made of 35mm aluminum tube with a wall thickness of 2mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 8 mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.
_x000D_
The DT 23/2 system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, base plates and much more solutions complete the product line.
_x000D_
The system is from European production which is compatible to the most common systems in the market
_x000D_
Technical specs:
_x000D_
- Diametrics main tube: 35 mm (1.4 inch)
_x000D_
- Wall thickness: 2 mm (0,08 inch)
_x000D_
- Diametrics braces: 8 mm (0.3 inch)
_x000D_
- Material: Aluminium EN-AW 6060 T66 (AlMgSi1)
_x000D_
- Included in delivery: 9 cones, 18 steel pins, 18 safety clips
_x000D_
- Length: 500 mm (without cone)
_x000D_
- Width: 500 mm
_x000D_
- Height: 194 mm
_x000D_
- Angle: 90°
_x000D_
- Weight: 2,4 kg
