Duratruss - DT 44/3-100 Black

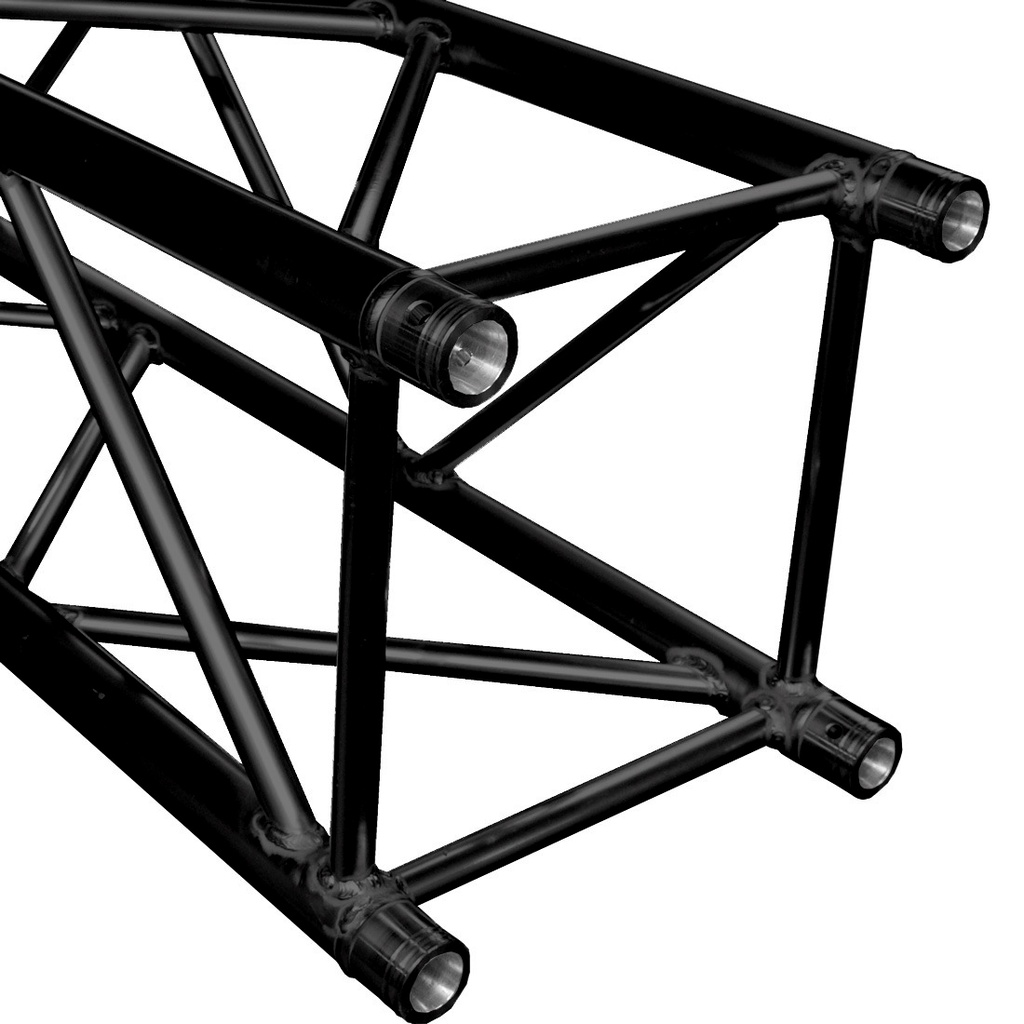

DuraTruss DT44/3-100 - 4-Point Truss 100cm
_x000D_The DT44/3 System is a 4-point truss system that is connected with conical connectors, bolts and locking pins. This quick connector system closes force-lockingly with the belt tube and allows rapid construction during frequent assembly and dismantling. The main tubes are made of 50mm aluminum tube with a wall thickness of 3mm and give this system an outstanding strength-to-weight ratio. The struts have a diameter of 25 mm with a wall thickness of 3mm. Each truss piece includes all necessary conical connectors, steel pins and safety clips.
_x000D_The system can be extended with various lengths, corners, T-branches and angles. Extensive accessories such as hooks, connectors, floor plates, spacers and much more complete the product line.
_x000D_The system is from European production which is compatible to the most common systems in the market and is TÜV approved.
_x000D__x000D_
Strengths of the truss system:
_x000D_• High quality aluminum tubes with 50mm diameter
_x000D_• Easy installation
_x000D_• Low weight
_x000D_• Space-saving transport
_x000D_• For exhibition booth construction and event technology
Specifications:
_x000D_• Main Tube: 50 x 3 mm
_x000D_• Braces: 25 x 3mm
_x000D_• Alloy: EN-AW 6082 T6 (AlMgSi1)
_x000D_• Manufactured according DIN 4112, DIN 4113-1
_x000D_• Coupling System: Concial connector with bolt and locking pin
_x000D__x000D_
Dimension and weight:
_x000D_• Lenght: 1000 mm (without connector)
_x000D_• Width: 400 mm
_x000D_• Height: 400 mm
_x000D_• Weight: 9,7 kg
_x000D_Delivery including connector set, consisting of: 4 conical connectors, 8 bolts and 8 locking pins.
