Duratruss - U-Frame 50

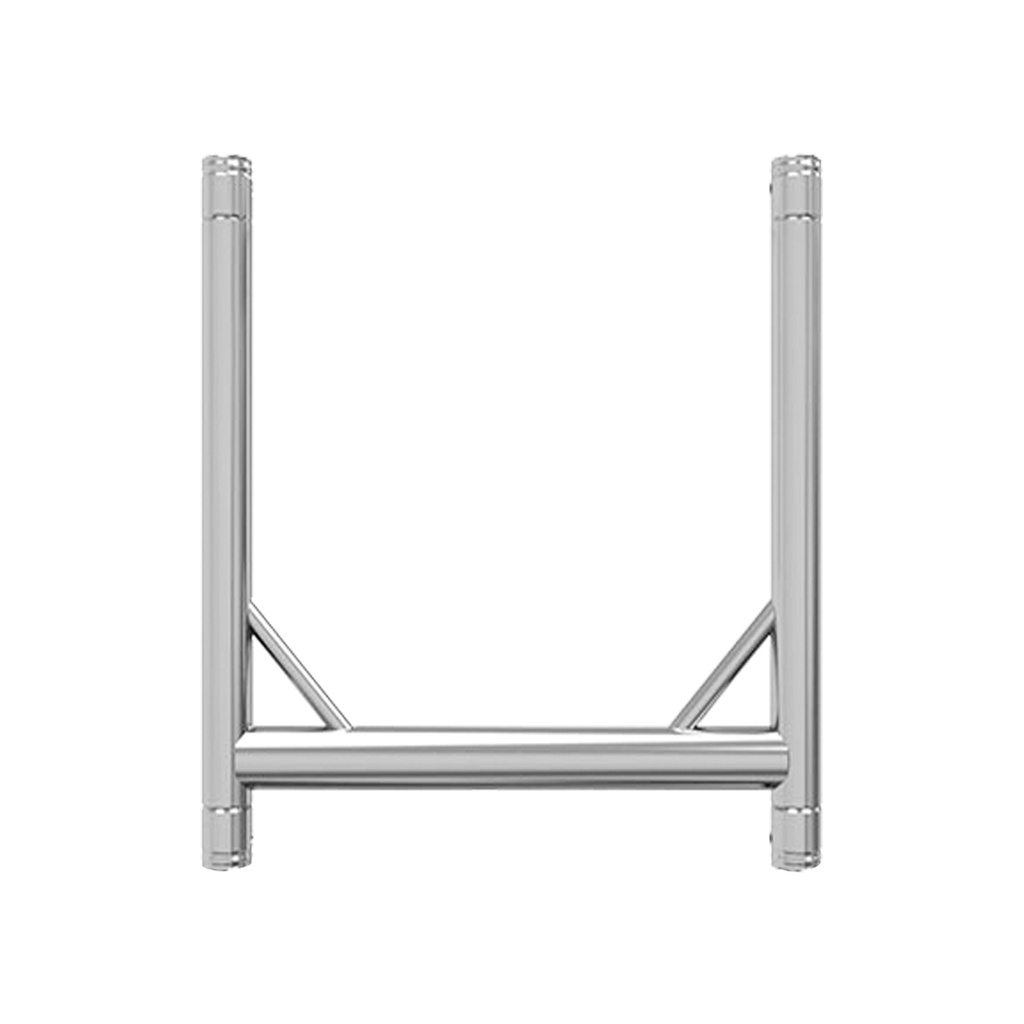

DuraTruss U-Frame 50 cm
_x000D_The U-Frame System is a portable solution for hanging fixtures without the use of a regualr truss system . Using several U-Frames one above the other you create an effective light column for events and shows. The U-Frame can also be used as a hanging version by using a top piece or coupler with cone.
_x000D__x000D_
The frame is also available in the size of 100cm width (Art. no. 1724300005).
Specifications:
_x000D_
- Main tube diameter: 50mm
_x000D_
- Wall thickness main tube: 2mm
_x000D_
- Bracing diameter: 20mm
_x000D_
- Wall thickness bracing: 2mm
_x000D_
- Alloy: EN-AW 6082 T6 (AlMgSi1)
_x000D_
- Connection: conical connectors with bolt and splint
_x000D_
- Delivery includes: 2 conical connectors, 4 bolts, 4 splints
_x000D_
- Produced according DIN 4112, DIN 4113-1
_x000D_
- Dimensions (W x H x D): 600 x 760 x 50 mm
_x000D_
- Weight: 2,3 kg
