Duratruss - DT 34/3-Flex Tower

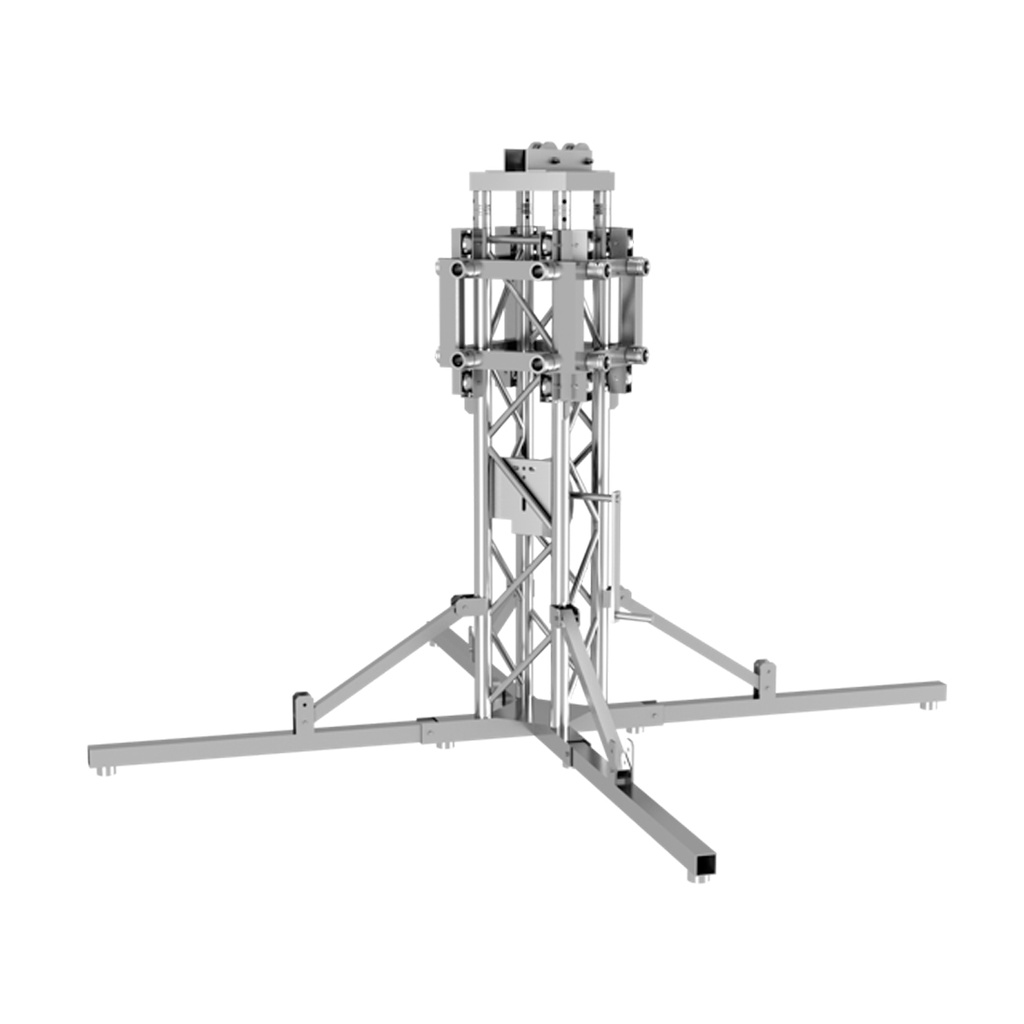

Duratruss DT 34/3 Flex Tower
_x000D_
The DT 34/3 Flex Tower from Duratruss is a unique transportable truss tower in which all parts are attached to the system for ease of transport and setup. This ‘no loose parts’ system has a loading capacity of 500kg and a maximum height of 6.5 meters (trussing opitional). Ideal for events of all types when a quick and easy truss tower solution is required, the lightweight (75kg) and easy-to-handle construction is compact for easy storage and transport. Flex Tower is made of sturdy aluminum alloy and includes a durable manual Columbus McKinnon winch which meets the strict BGV-C1 German regulation.
_x000D_
Parts List DT 34-Flex Tower
_x000D_
Pc Description
_x000D_
1pc Sleeve Block
_x000D_
4pc Long Outtrigger with spindle
_x000D_
1pc Top Section
_x000D_
4pc Hinge Section
_x000D_
1pc Hand winch
_x000D_
1pc Base Section
_x000D_
1pc DT 34/3-150 (50 x 3 mm tube)
_x000D_
Transport Wheels
Technical specs:
_x000D_
- Diametrics main pipe: 50mm
_x000D_
- Wall thickness: 3 mm
_x000D_
- Material: Aluminium EN-AW 6082 T6 (AlMgSi1)
_x000D_
- Dimensions braces: 25 x 3 mm
_x000D_
- Included in delivery: as shown above
_x000D_
- Length: 510mm
_x000D_
- Width: 510 mm
_x000D_
- Height: 1770 mm
_x000D_
- Dimension extended Ø: 2510mm
_x000D_
- Max. height: 6,5 m
_x000D_
- Weight: 75 kg
_x000D_
- Loading Capacity: 500kg
_x000D_
Please notice that you need additional 5m straight DT34/3 truss elements, which are not included.
